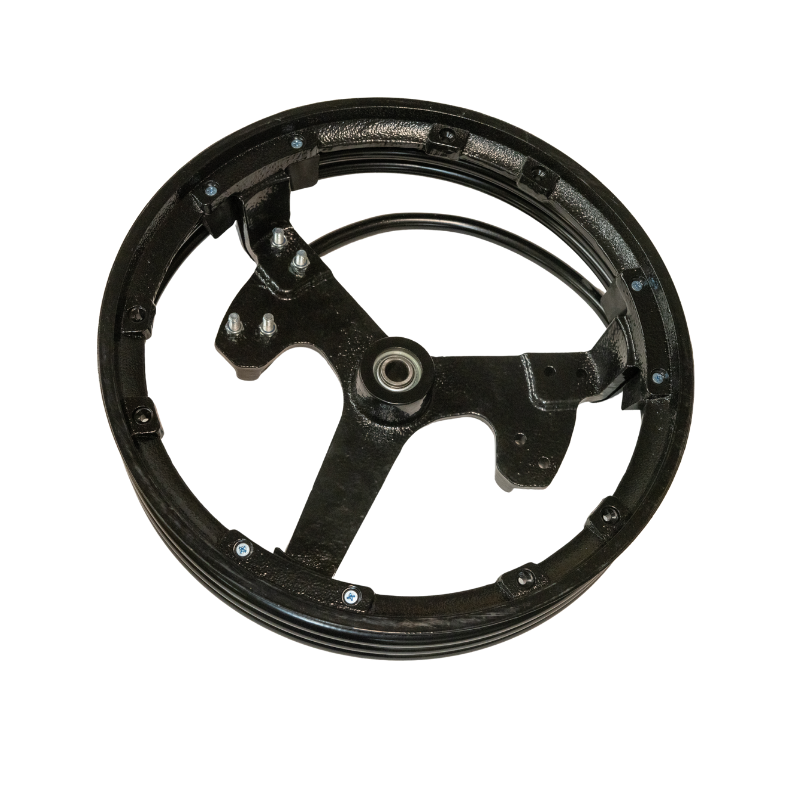

The Ryan NT All Metal Coil Gauge Wheel is engineered for ultimate durability and performance in a variety of soil types, including high-residue, no-till environments where rubber gauge wheels struggle. Built from cast and spring steel, the coil design improves field performance by reducing mud buildup and maintaining consistent depth across a variety of seeding conditions.

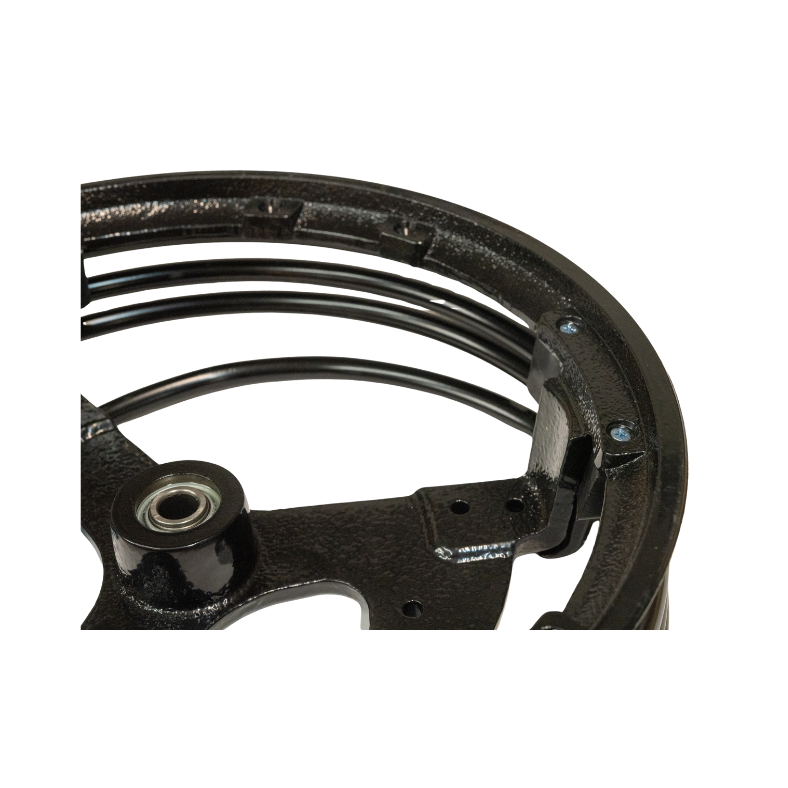

Triple Coil Construction: 3 compression coils made from 0.55" (14mm) spring steel flex naturally to shed debris and self-clean.
Open-Spoked Design: Promotes mud clearance from inside the wheel, preventing plugging and blockage in wet or sticky soils.
Spring Steel Coil + Cast Steel Rim: Eliminates rubber failures, sidewall wear, and dry rot.
5023 Waterpump Bearing: Heavy-duty sealed bearing minimizes maintenance and downtime.
Adjustable Spacer System: Allows precise tuning of the disc-to-gauge-wheel gap based on row unit wear or brand-specific fitment.
Outer Diameter: 16" (406 mm)
Width: 4.5" (114 mm)
Coil Thickness: 0.55" (14 mm) spring wire
Material: Spring steel coil, cast steel rim
Weight: 12 kg / 25.5 lbs
John Deere, Case IH, Kinze, Horsch, Great Plains, AGCO White, Serafin, Excel, Norseman, and Boss
